A defined sleeve travel.
Radial shoulder stops capture the sleeve around a proposed 3 mm release motion.
Retained development study. Dimensions, names and checks belong to this revision—not automatically to the retrofit-only product. Manufactured tank shells are deferred. No installation instruction, certification or manufacturing release is represented.
The source reasoning
Why this detail was investigated.
A defined travel stop makes the retention concept inspectable. Threads, stop retention, return spring and physical qualification remain unresolved.
Read the research and limits
Research record
The detail behind
the study.
Source-linked work for this revision. Reported checks describe the stated model or test; physical qualification and applicability to the current retrofit remain separate.
SUBFIELD LINK / MECHANICAL DEVELOPMENT

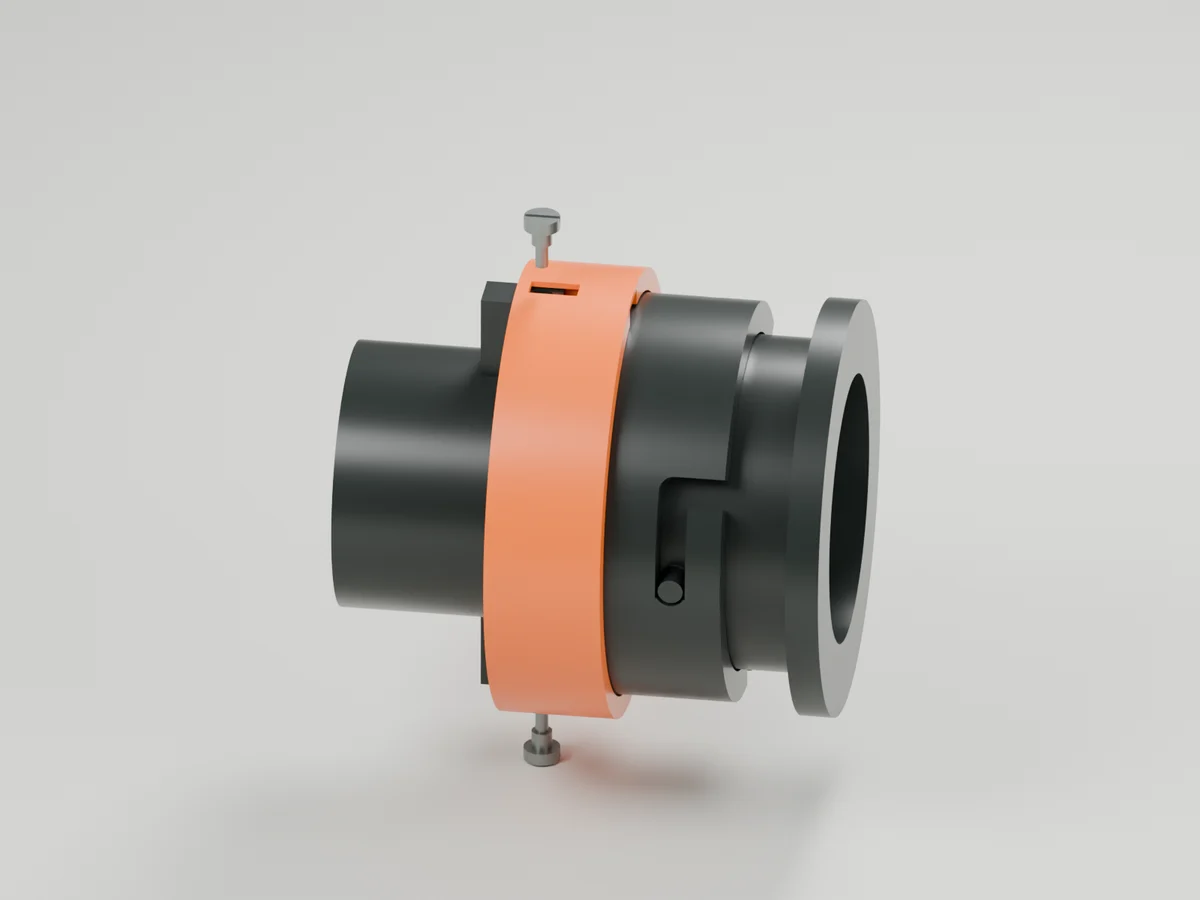

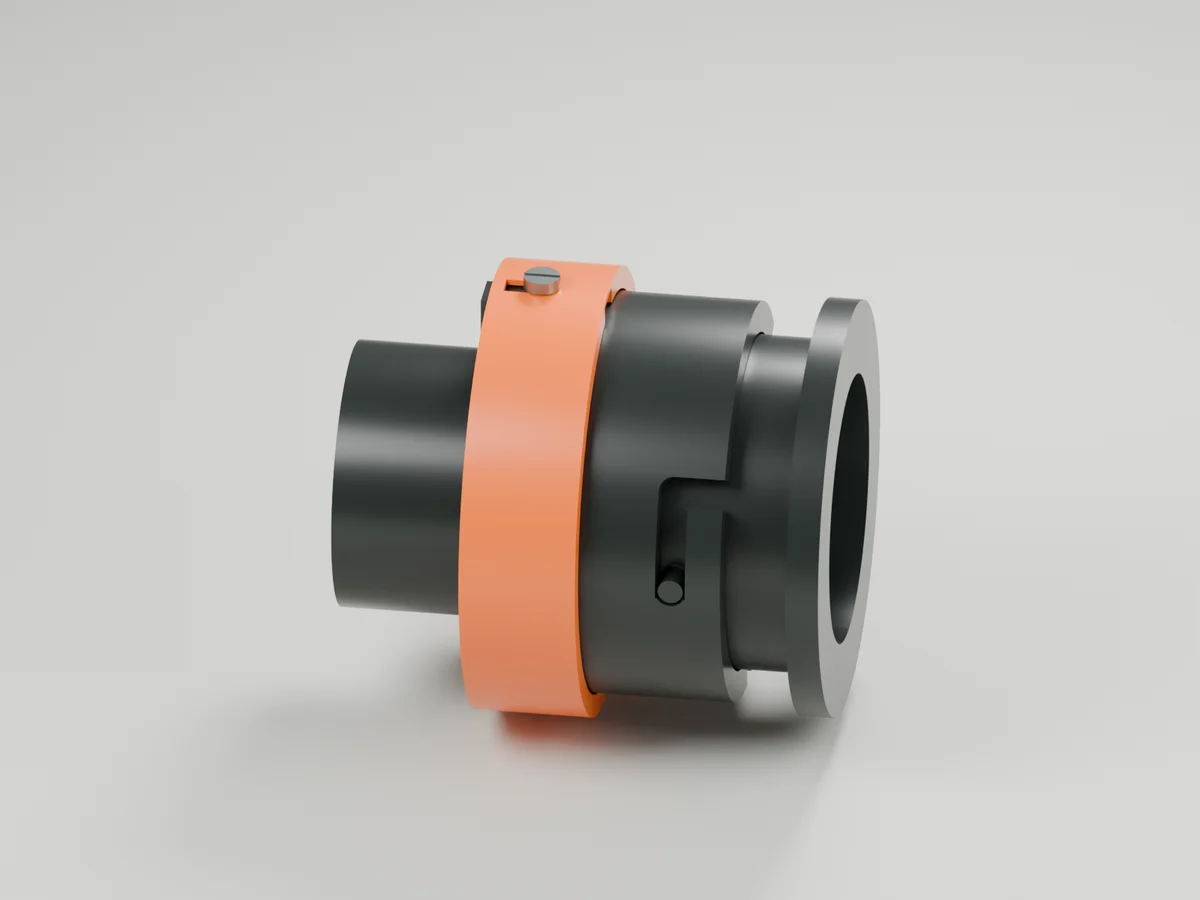

Two radial shoulder stops capture the orange sleeve while preserving its 3 mm release motion. Fit the sleeve first, then install the stops through its windows.
Concept only. Stop threads and retention, the return spring and physical qualification remain open. These views show six mechanism parts; the full assembly has 457 solids.
Complete STEP · Detailed design notes · Nominal dimensions · Verification status
1,411 checks and copied-source reproduction pass. Full regression remains running; it is not a manufacturing-release approval.
Rectangular tank family · Cable construction and research
Source and revision record
Source: cable-stops-r8/index.html
Source SHA-256: 6fbbae628a4cf948f697bdca5d773516be4b761eb0942c631f141c8016e37117
Geometry and images describe this development revision. Current product ratings and manufacturing release require separate qualification.
