Product family / Design study / SURFACE-FAMILY-R2
One family. Every detail.
Thirteen standalone product groups with assembled and service views.
Retained development study. Dimensions, names and checks belong to this revision—not automatically to the retrofit-only product. Manufactured tank shells are deferred. No installation instruction, certification or manufacturing release is represented.
The source reasoning
Why this detail was investigated.
A shared surface language connects controls, filtration and service hardware. These renders retain the earlier standalone geometry and its original limits.
Read the research and limits
Research record
The detail behind
the study.
Source-linked work for this revision. Reported checks describe the stated model or test; physical qualification and applicability to the current retrofit remain separate.
Core
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Original R1 source scene · Render record
Tank Hub
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Twelve capped branch envelopes are a study allocation, not released ports or electrically functional connectors.
Stationary carrier has not been fitted to the current tank collar.
Original R1 source scene · Render record
Alarm
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Original R1 source scene · Render record
Field Node
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Original R1 source scene · Render record

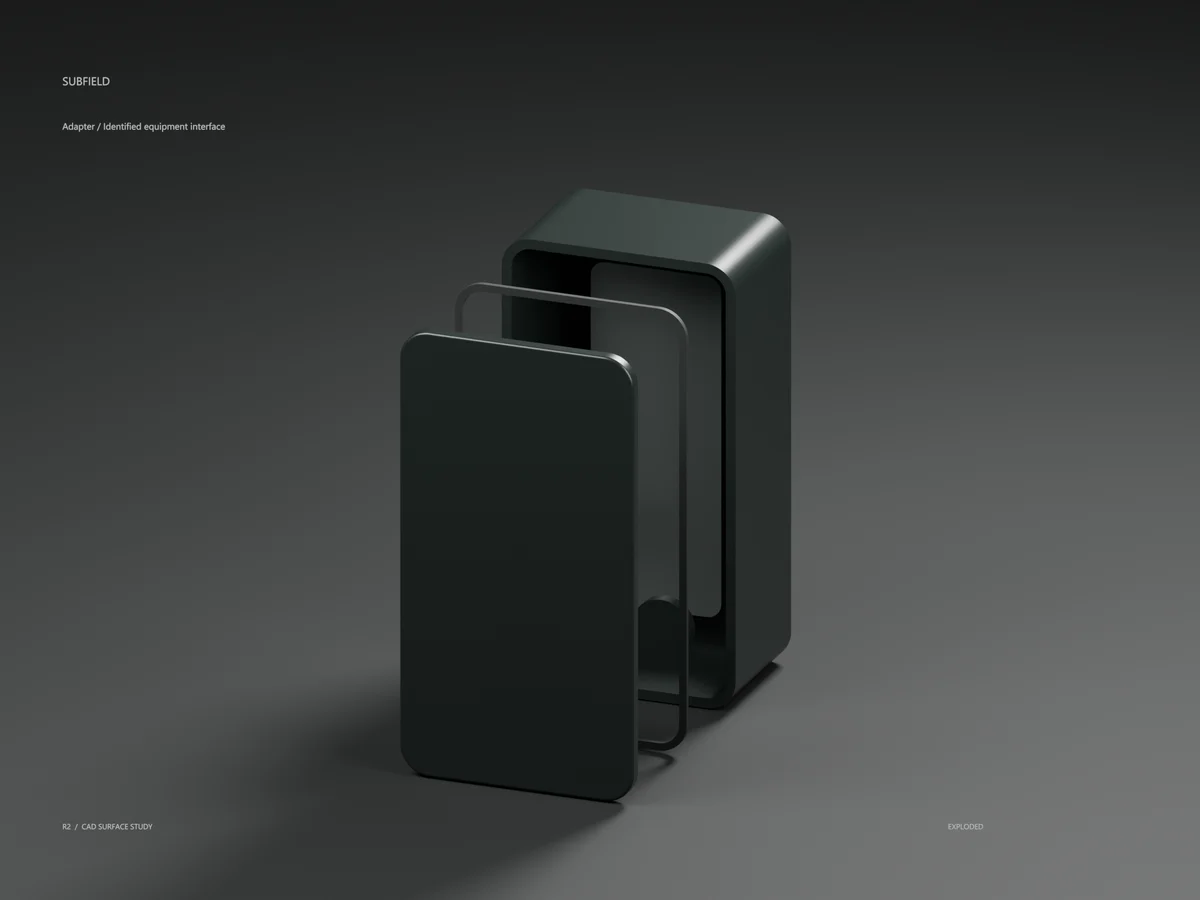

Adapter
New dimensional packaging study. Internal supplier hardware is not represented.
Flat seal, attachment, thermal behavior and electrical isolation are unqualified.
Surface logo and Fieldline are finish artwork, not structural geometry.
Original R1 source scene · Render record
Field Filter
Housing and carrier only; no actual filter element, cut size, pressure rating or bypass seal.
Tank service integration, hydraulic isolation, threads, head retention and contamination management remain unresolved.
Original R1 source scene · Render record
Screen
Cylindrical service candidate, not a selected filter element
Large cage windows are structural openings, not a solids cut size
Sleeve/head coupling, hydraulic inlet/outlet isolation and bypass sealing remain unresolved
Captured is an idealized geometric state, not demonstrated liquid/solids containment
Flat seal has no compression/gland design; sleeve lift actuation is unresolved
New finish presentation of unchanged previously exported CAD; not an engineered material/coating specification.
Original R1 source scene · Render record
Treat
One representative segment; no released media count or treatment capacity
No biological medium, distributor, collector plumbing, cables or latch is selected
Fixed rails remain when the cassette or carrier is removed
Open-back guides pass narrow rung tabs; wear inserts and retention remain engineering work
No wet-mass, lifting, fouling or process-recovery qualification
New finish presentation of unchanged previously exported CAD; not an engineered material/coating specification.
Original R1 source scene · Render record
Access
Panel/frame/band buckling, joint and roof load transfer, settlement, uplift, leakage, chemical/thermal aging and creep are unqualified; the 4572 mm case is a geometry study, not a permitted burial depth.
The cover and secondary grate have no impact, pedestrian, traffic or fall-prevention rating. Complete retention, lifting attachments, slip-resistant surface and physical tests before use.
Clear retrieval volumes do not establish human reach. Long guides, lifting aid, contained retrieval actuation, Hub carrier and routed services remain to be completed.
Laminate, barrier, adhesive, gasket compound, mold radii/tooling, tolerances, inspection and controlled fabrication release remain open.
New finish presentation of unchanged previously exported CAD; not an engineered material/coating specification.
Original R1 source scene · Render record
Pump Dock
No pump or hydraulic quick coupling selected. Rails, carrier and retrieval handle are custom interface studies.
Not located in the current tank; extraction load, coupling, retention and tank mounts require engineering.
Original R1 source scene · Render record
Connect
Empty keyed mechanical shells. No conductive contacts, pinout, voltage, locking mechanism or ingress rating.
0 / 120 / 240 degree keys illustrate class differentiation; wrong-class contact-prevention and tolerances require design and testing.
Original R1 source scene · Render record
Sense Mount
Custom carrier study only. No authentic OEM sensor envelope or calibration/sensing face is represented.
Saddle clamp, sensor model and installation location remain unresolved.
Original R1 source scene · Render record
Service Kit
Empty carry-case study; tools, lining, hinge/latch engagement and handle attachments remain unresolved.
Not a lifting aid, spill container or qualified transport package.
Original R1 source scene · Render record
Source and revision record
Source: surface-family-r2/index.html
Source SHA-256: e0de4388c6e61692f30f8e8998fde9682cbd40d90304af4be6880722e4ea87ba
Geometry and images describe this development revision. Current product ratings and manufacturing release require separate qualification.
