Controls / Development CAD / CABINET-BACKPLANE-R38

Controller common backplate. In detail.

Inspect the R38 controller assembly, duct attachments and backplate withdrawal.

Retained development study. Dimensions, names and checks belong to this revision—not automatically to the retrofit-only product. Manufactured tank shells are deferred. No installation instruction, certification or manufacturing release is represented.

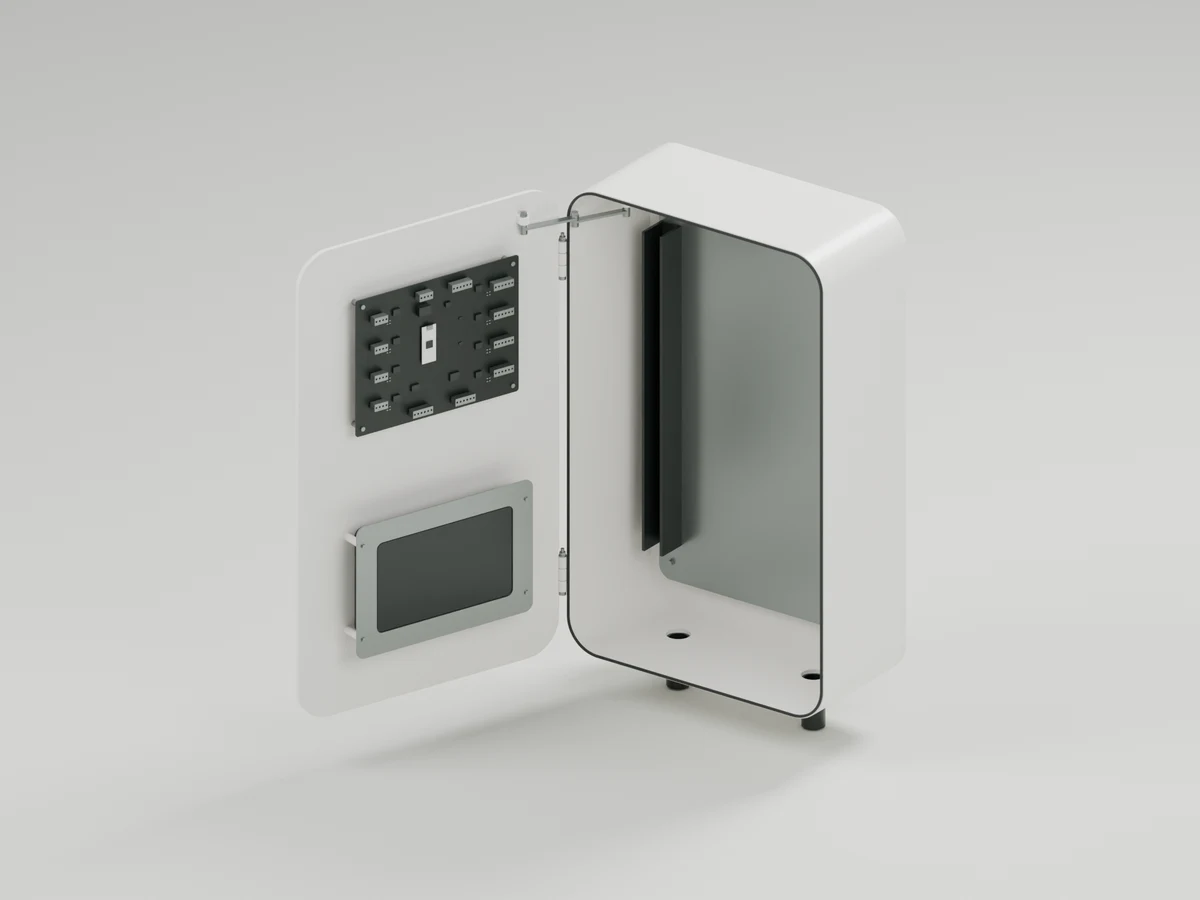

Controller · R38 open assembly
R38 controller common-backplate assembly, including the current door-mounted board and screen arrangement. The backplate is unpopulated; wiring, power equipment, closure and electrical qualification remain open.

The source reasoning

Why this detail was investigated.

The current common backplate replaces unsupported lower plates. Nominal geometry does not establish wiring, safe service, electrical segregation or physical qualification.

Control fascia attachmentCore enclosure mechanicsControl platform
Read the research and limits

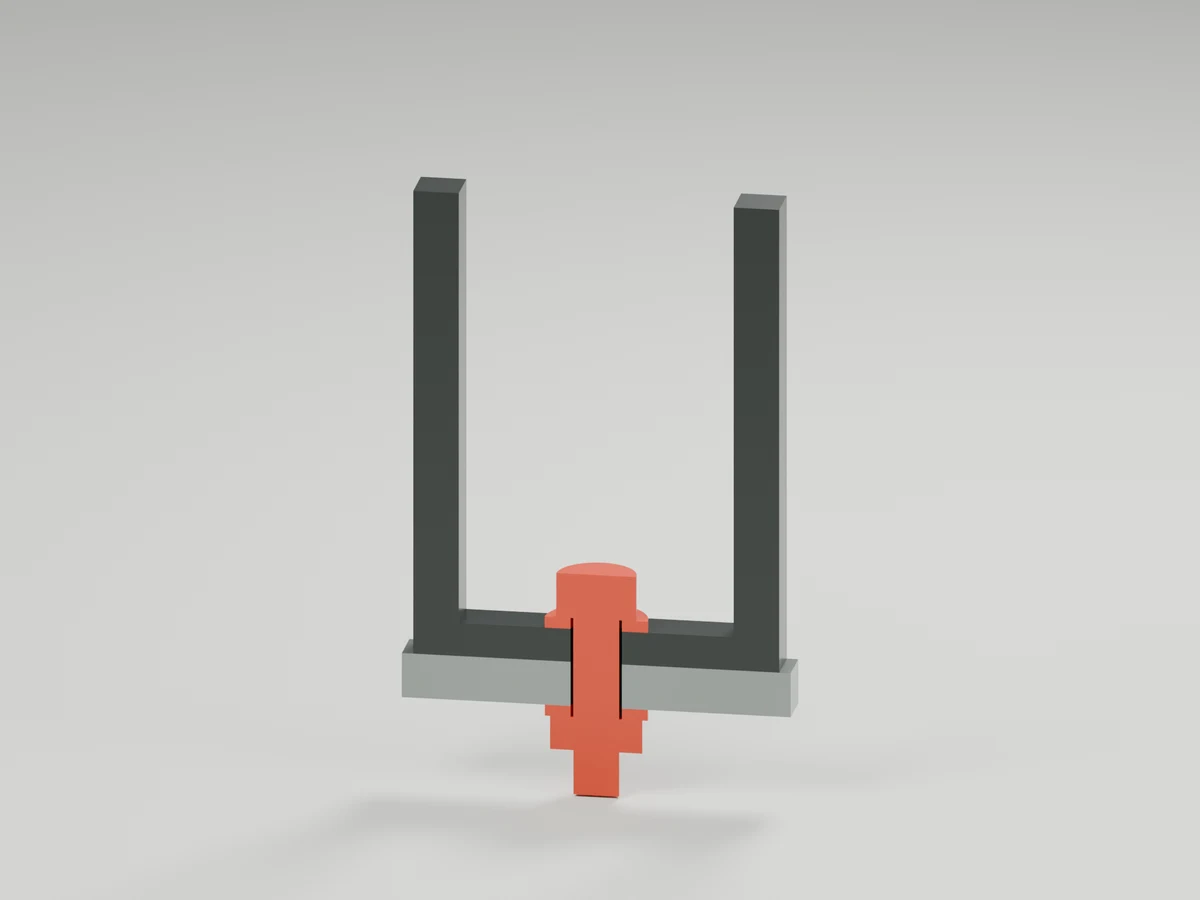

Controller · R38 attachment section
R38 controller cabinet study shown as integration context for Core, not a released Core enclosure. The board and screen sit inside the service door. The backplate is unpopulated; wiring, power equipment, sealing and electrical qualification remain open.
Open full-size image

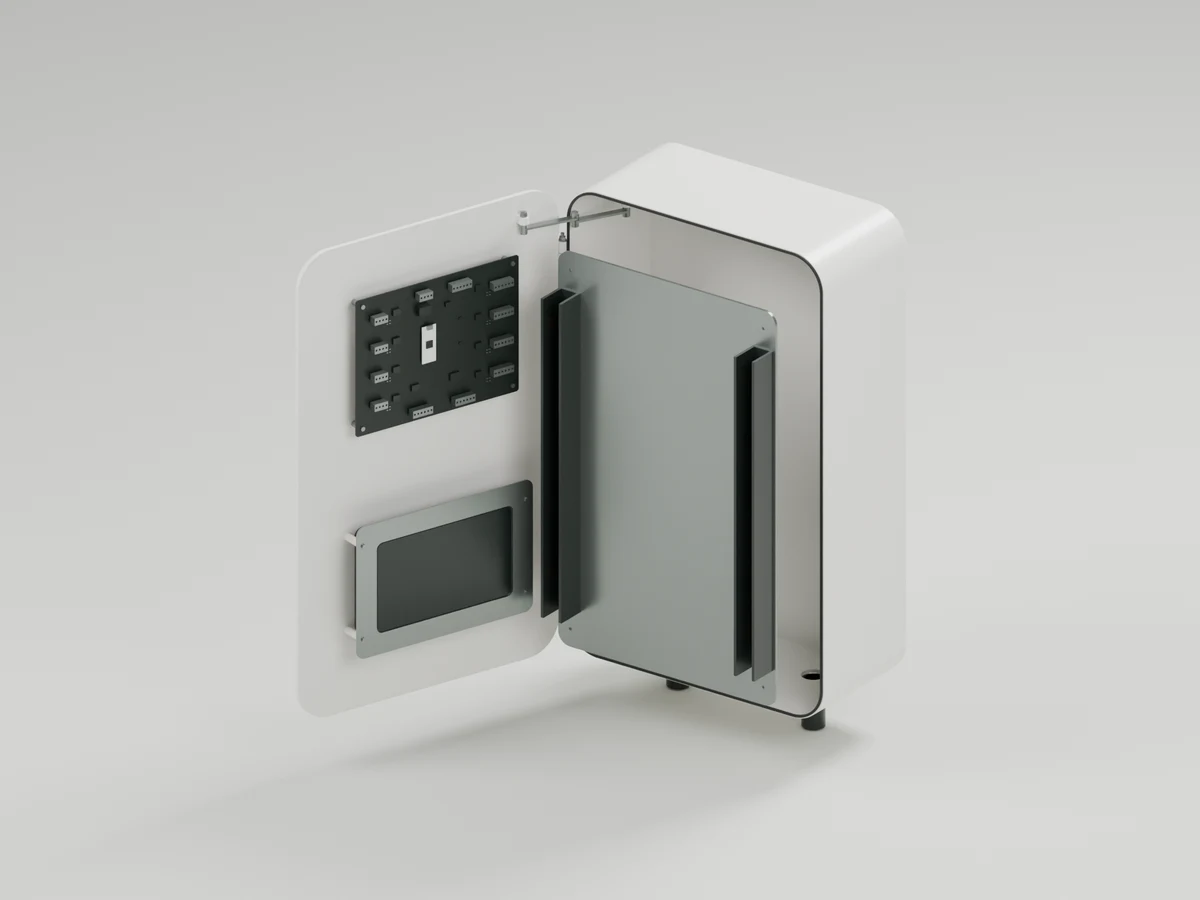

Controller · R38 withdrawn backplate
R38 controller cabinet study shown as integration context for Core, not a released Core enclosure. The board and screen sit inside the service door. The backplate is unpopulated; wiring, power equipment, sealing and electrical qualification remain open.
Open full-size image

Research record

The detail behind
the study.

Source-linked work for this revision. Reported checks describe the stated model or test; physical qualification and applicability to the current retrofit remain separate.

The current common backplate replaces unsupported lower plates. Nominal geometry does not establish wiring, safe service, electrical segregation or physical qualification.

R38 controller cabinet study shown as integration context for Core, not a released Core enclosure. The board and screen sit inside the service door. The backplate is unpopulated; wiring, power equipment, sealing and electrical qualification remain open.

Source and revision record

Source: cabinet-backplane-r38\README.md

Source SHA-256: 66a6098d326a1a7d7f961c931d45f3e1c97847aedab6370f932018ddf5d3a97f

Geometry and images describe this development revision. Current product ratings and manufacturing release require separate qualification.
